TYA30 Off-road Electric Pallet Truck (Champion Edition extended fork)

Flexible matching of multiple lead-acid batteries and lithiumbatteries, ultra-long battery life to meet customer needs. The detailsand appearance of the whole vehicle are upgraded to be morerefined and high-end, with obvious differences and full selling points

Permanent magnet brushless motor
One-piece stamping fork
Heavy duty wheel
Heavy-duty load-bearing wheel assembly

REQUEST QUOTE

Overview
Features
Application

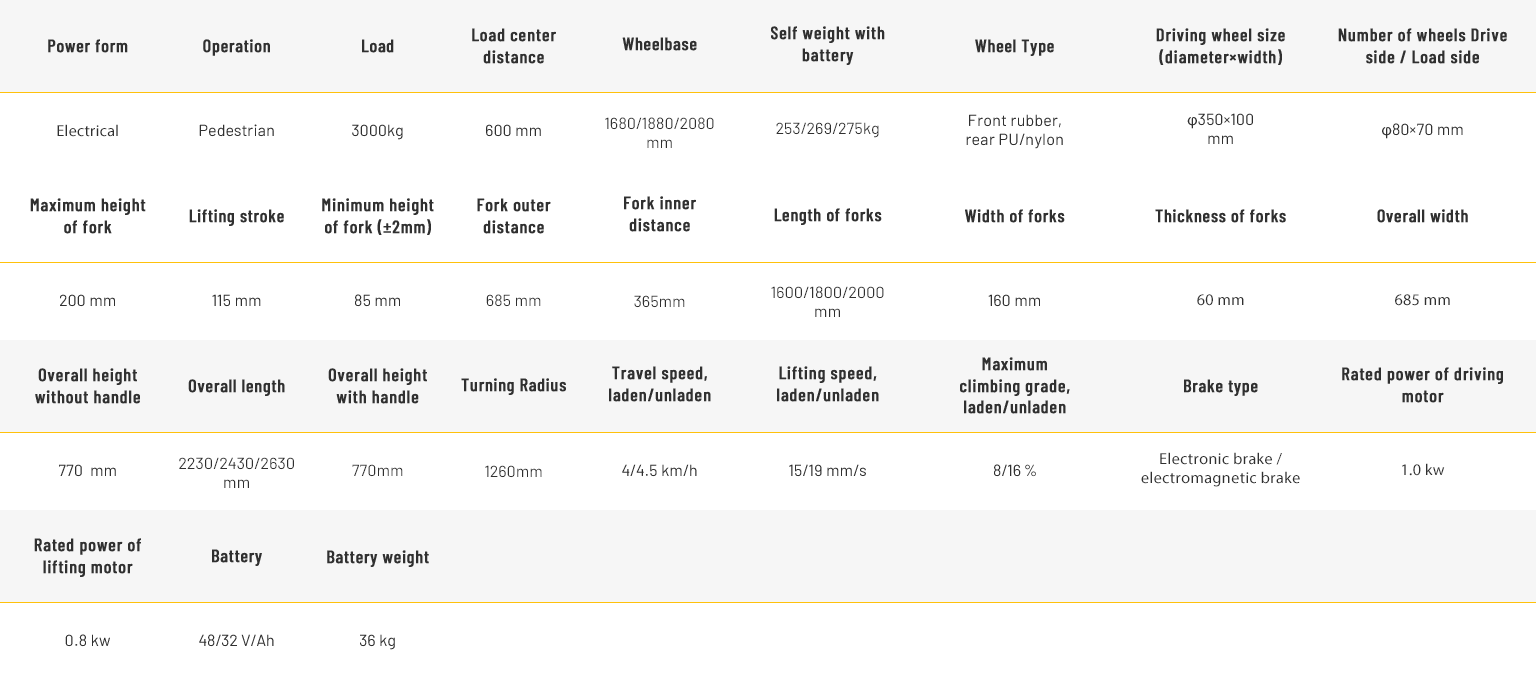

Tech Specs

Overview

TYA30 Off-road Electric Pallet Truck (Champion Edition extended fork)

TRAVEL SPEED (LADEN/UNLADEN)

4/4.5 km/h
LIFTING SPEED (LADEN/UNLADEN)

15/19 mm/s
MAXIMUM CLIMBING GRADE (LADEN/UNLADEN)

8/16 %
BRAKE TYPE

Electronic brake / electromagnetic brake

Features

Permanent magnet brushless motor

48V permanent magnet brushless maintenance-free high-torque motor, with strongpower to climb steep slopes, cross potholes, etc., and conquer complex roadconditions.
One-piece stamping fork

Extended fork are independently molded, one-piece stretching molding, higherstrength, smooth appearance, and obvious difference.
Heavy duty wheel

assemoly Upgraded high frequency quenching heavy duty load-bearing wheel frameto cope with complex road conditions: high strength and deformation resistance, 35degree hardness and long life, high-quality nylon load-bearing wheels with innovativefull-bearing design, wear resistant, durable and worry free.
Heavy-duty load-bearing wheel assembly

Heavy-duty integrated oil cylinder with high strength,; thickened cylinder rod diameter 50mm, higher safety factor.
