TYA30 All-electric (Champion Lithium battery)

The spacious battery compartment can be equipped with two sets ofiron-lithium batteries at the same time, with an innovative design of"one-key power supply switching"function,"one-second batteryreplacement"is convenient and fast, achieving unlimited battery lifearound the clock!

Four-proof arceleration switch
Permanent magnet brushless motor
Sealed gearbox
Solid rubber drive wheel

REQUEST QUOTE

Overview
Features
Application

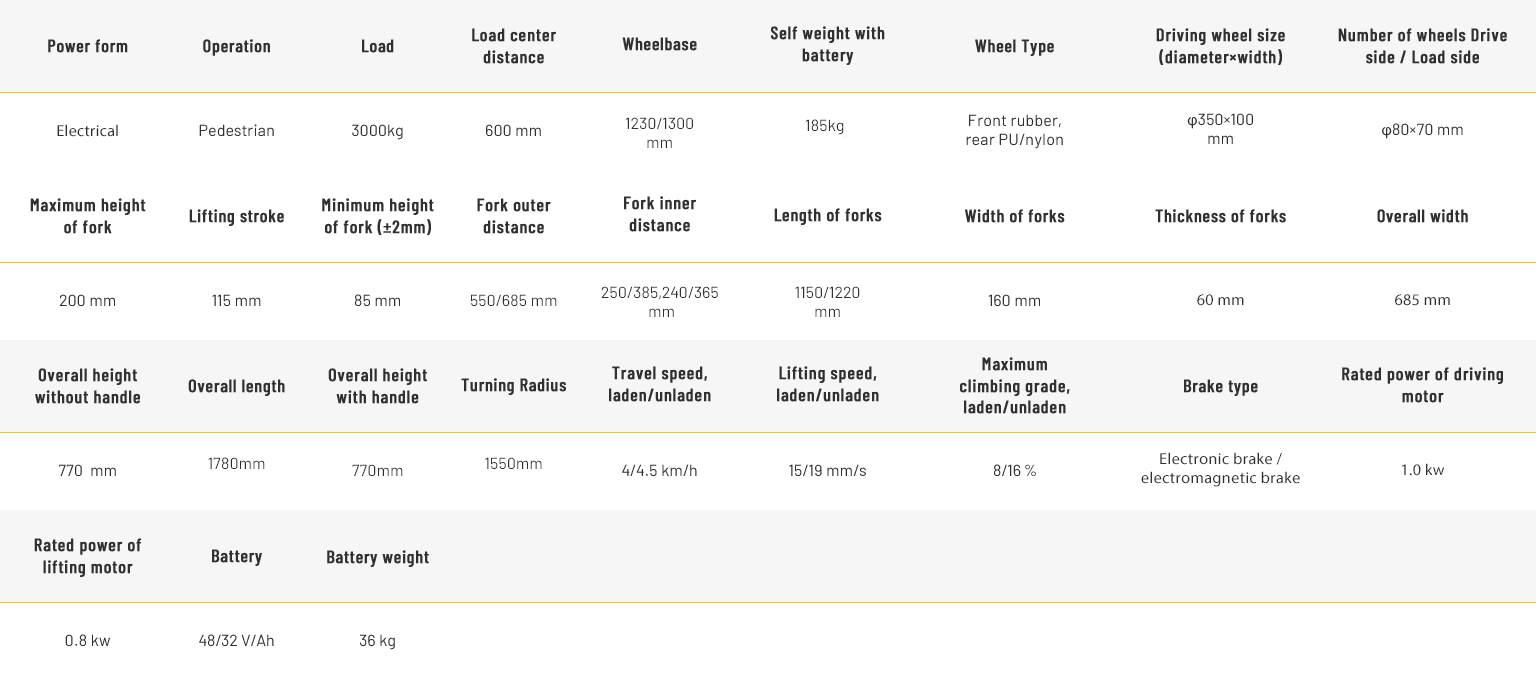

Tech Specs

Overview

TYA30 All-electric (Champion Lithium battery)

TRAVEL SPEED (LADEN/UNLADEN)

4/4.5km/h
LIFTING SPEED (LADEN/UNLADEN)

15/19mm/s
MAXIMUM CLIMBING GRADE (LADEN/UNLADEN)

8/16%
BRAKE TYPE

Electranic brake /electromagnetic brake

Features

Four-proof arceleration switch

Dustproof, waterproof, shockproof and burn-proof
Permanent magnet brushless motor

48V permanent magnet brushless maintenance-free high-torque motor, with strongpower to climb steep slopes, cross potholes, etc., and conquer complex roadconditions.
Sealed gearbox

Fully sealed, high-speed ratio, large modulus, and high-torque gearbox, stable, reliable, and durable.
Solid rubber drive wheel

350x100mm heavy-duty solid rubber drive wheels, strong wear resistance anddurability, strong grip friction, 100mm ground clearance and extremely strongpassability.
